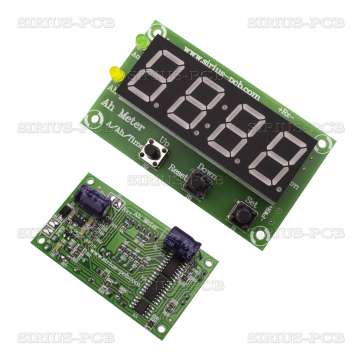

Amp Hour Meter

Home

Amp Hour Meter

All pictures are for illustrative purpose only. Real product may differ from picture, but all parameters and quality are as described

Product characteristics
Reference number	100885
Weight	0.09 kg

Enquiry Share

quantity	Item per one piece
1-4	0.00 лв.
5-14	0.00 лв.
15+	0.00 лв.

The product is not available

The prices include VAT

Description Files

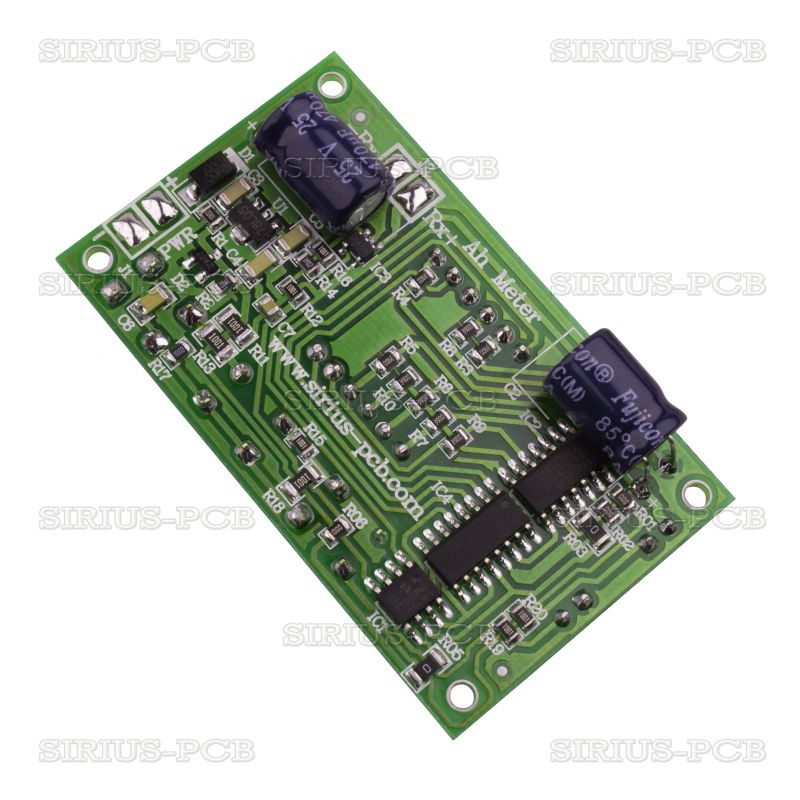

The device is based on contemporary microcontroller and is applicable for measurements of electric current (A) and electricity (Ah). Ah Meter is commonly used in electrochemical systems such as galvanization, battery capacity measurement and etc.

Ah Meter basic specifications:

Measurements of electric current: 1 ÷ 2000А DC (depending on the shunt selected)
Accuracy:

- Measured current: ±1%
- Time: ±1%

Shunt Resistor Type: 60mV or 75mV
Non-volatile memory for keeping:

- Shunt Resistor Type
- Shunt Resistor Current Rating
- Electric charge (Аh)
- Time (HH:MM)

Display: 4-digit 7-segment LED display
Supply Voltage: 8 ÷ 18V DC/100mA
PCB Size: 60 x 36mm
